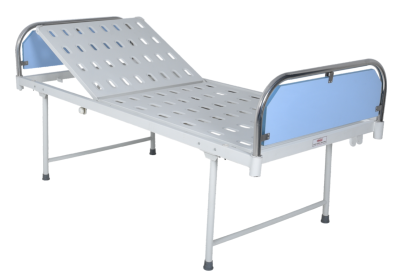

1. Manual Backrest Adjustment

   • Operated with a smooth manual crank handle

   • Allows patient to sit in Semi Fowler position (head elevation)

2. Strong Mild Steel Frame

   • Durable and sturdy construction

   • Long-lasting powder-coated finish to prevent rust

3. Comfortable Mattress Platform

   • Flat and stable surface

   • Suitable for medical mattresses

4. Foldable Side Safety Rails

   • Metal side rails prevent patient from falling

   • Easy to fold up and down

5. Smooth Mobility with Lockable Wheels

   • Four caster wheels for easy movement

   • Wheel locks for safety and stability

6. Compact and Home-Friendly Design

   • Suitable for home care and hospital use

   • Easy to place in small rooms

7. Easy Manual Operation

   • No electricity required

   • Reliable during power cuts

Common Uses

• Post-surgery patient care

• Elderly patient care

• Home healthcare

• ICU step-down care at home

• Patients with breathing or mobility difficulty

1. Manual Adjustment Mechanism

• Operated using a crank handle (usually at foot end)
• Adjusts backrest (head section) smoothly
• No electricity required → reliable and cost-effective

2. Bed Structure & Design

• Two-section platform (backrest + fixed lower section)
• Backrest can be elevated up to ~80–85°
• Designed for semi-sitting patient position (feeding, breathing, rest)

3. Frame & Material

• Made of mild steel (MS) or CRCA steel for strength
• Perforated sheet platform for ventilation and hygiene
• Epoxy powder coating for rust resistance and durability

4. Head & Foot Panels

• ABS or polymer molded panels
• Detachable without tools for easy cleaning and maintenance

5. Safety Features

• Collapsible side rails to prevent falls
• Smooth edges and stable structure
• Optional safety locking wheels (castors)

6. Mobility & Support

• Mounted on:
  • PVC stumps (fixed type) OR
  • Castor wheels (2 with brakes, 2 without)
• Easy movement and positioning inside wards

7. Accessories (Optional / Included)

• Mattress (foam, waterproof cover)
• IV pole (saline stand) with hooks
• Urine bag holder
• Side railings

8. Dimensions (Typical)

• Length: ~2000–2200 mm
• Width: ~900–1000 mm
• Height: ~600 mm

9. Load Capacity

• Safe working load: ~200–225 kg

• Manual Crank Mechanism
  Operated by a smooth hand crank to adjust the backrest position easily.
• Adjustable Backrest (Semi Fowler Position)
  Allows elevation of the upper body for comfort, feeding, and medical needs.
• Sturdy Frame Construction
  Made from high-quality mild steel with powder-coated finish for durability and rust resistance.
• Perforated or Sheet Top Surface
  Provides proper ventilation and supports mattress placement.
• Detachable Head and Foot Panels
  Easy to remove for cleaning, transport, or emergency access.
• Side Safety Rails (Optional)
  Foldable or collapsible rails to prevent patient falls.
• IV Rod Provision (Optional)
  Facility to attach an IV stand for medical treatments.
• Smooth Mobility (Optional Wheels)
  Fitted with castor wheels for easy movement and repositioning.
• Load Bearing Capacity
  Designed to support standard patient weight safely.
• Easy Maintenance
  Simple mechanical design ensures low maintenance and long life.
